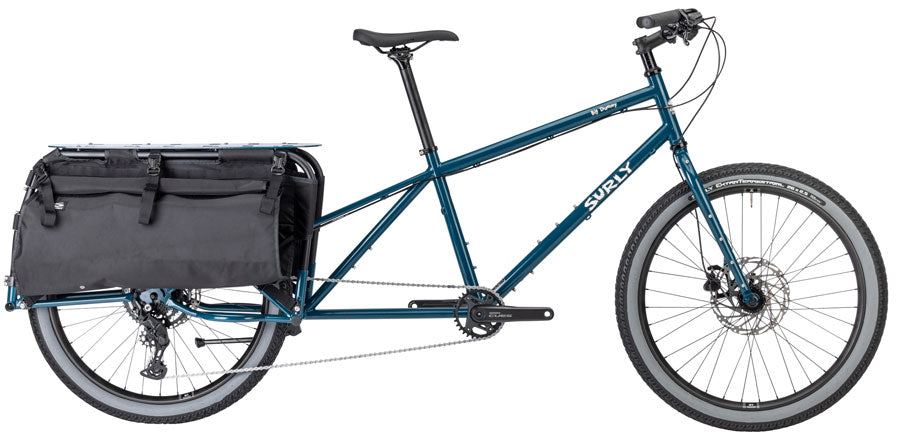

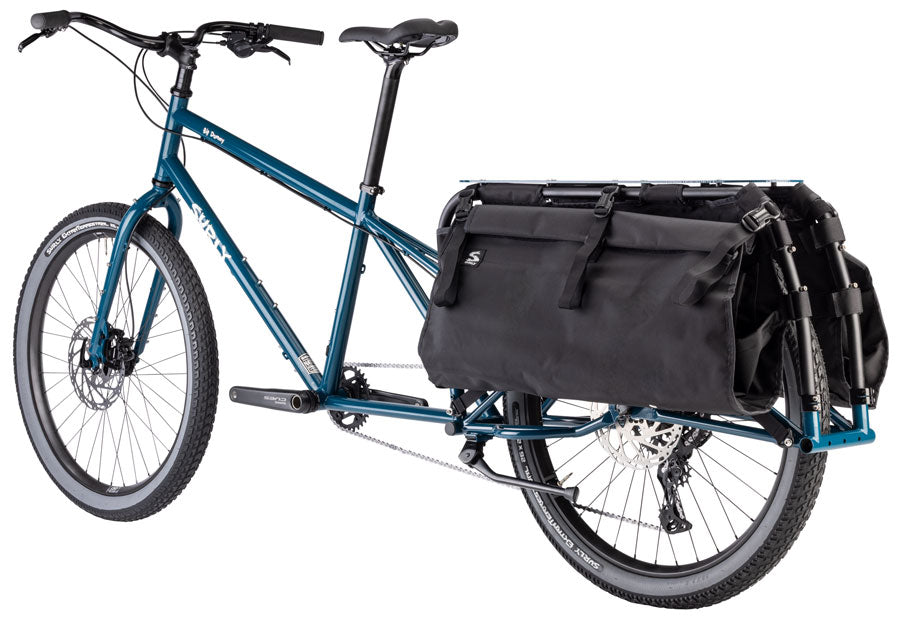

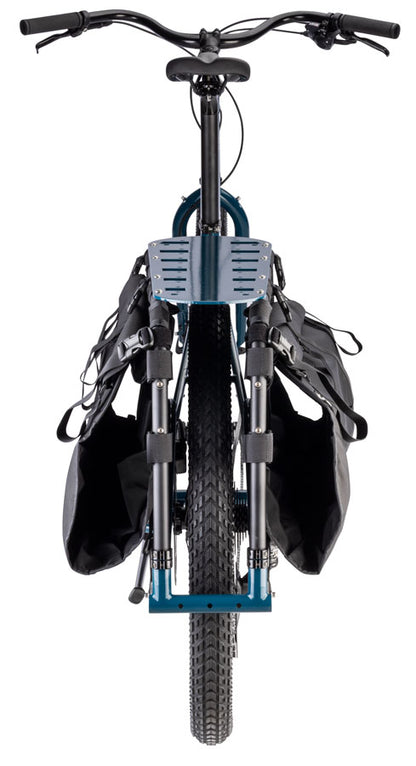

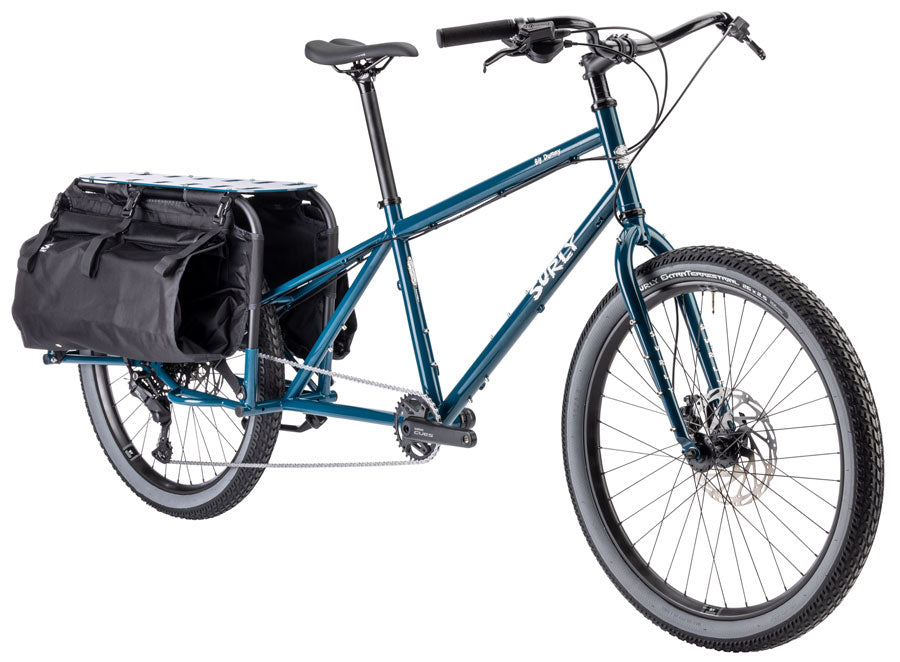

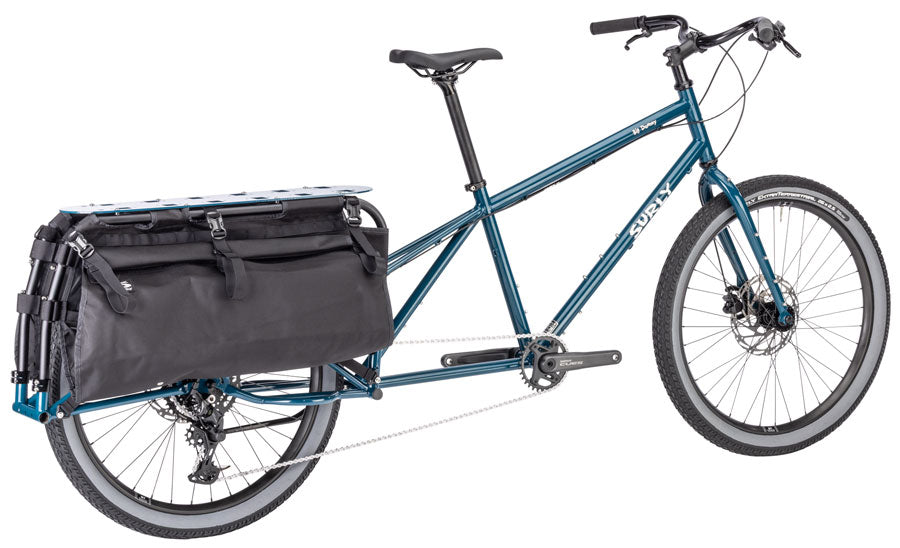

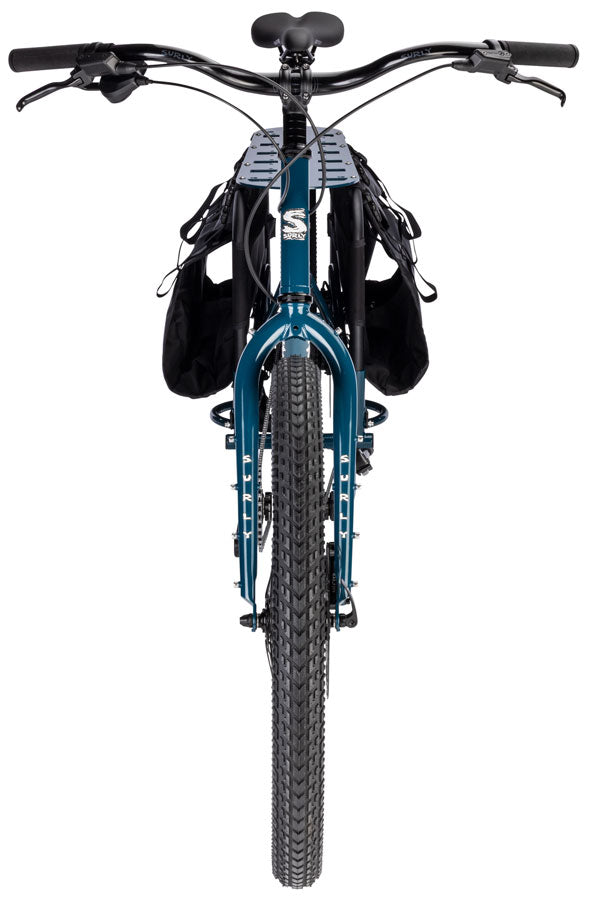

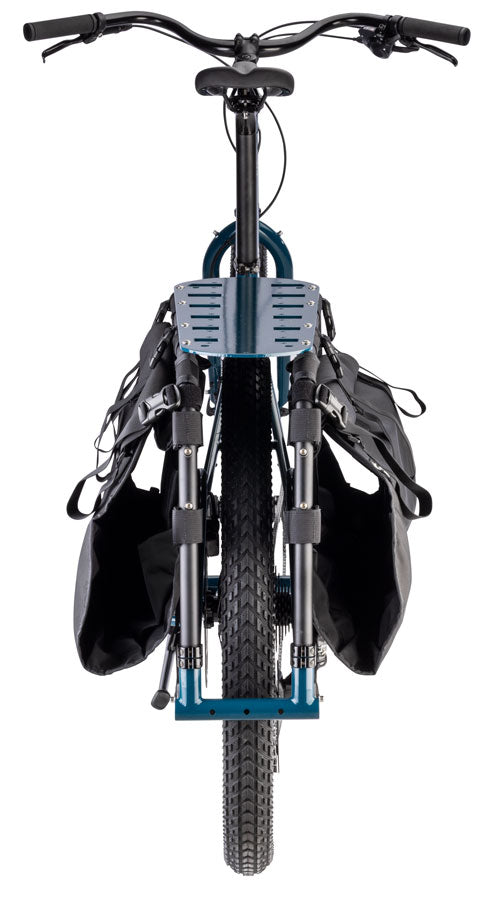

NEW Surly Big Dummy Cargo Bike - 26", Steel, Twilight Zone

NEW Surly Big Dummy Cargo Bike - 26", Steel, Twilight Zone

$ 2,699.00 USD
$ 2,699.00 USD $ 2,699.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Special Order - In Warehouse or Pre-Order - contact us for ETA
ATC SKU: 210000079534
UPC: 708752543355
Other IDs: BK01447

PRODUCT DETAILS

The Surly Big Dummy is a longtail cargo bike designed to transport a rider and up to 200 pounds of their chosen cargo. Even under the heaviest burdens, Big Dummy is smooth and maneuverable. Bikes and framesets include Dummy Deck, Dummy Rails and Collars, and Big Dummy Bags Version 2.0.

  • 100% Surly 4130 Chromoly Natch tubing, double-butted main triangle and fork blades, TIG welded, E.D. coated for rust prevention
  • Fender eyelets and Surly Trip Guides for continuous brake/shift housing or brake hydraulic lines
  • Two standard bottle mounts and one Three-Pack mount on Small frame; three standard bottle mounts and one Three-Pack mount on Medium and Large; two Four-Pack mounts on the fork
  • Includes two Surly Dummy Rail Collars for a stiffer Dummy Rail/frame interface
  • Includes kickstand plate
  • 26 x 2.5" maximum tire clearance; no limitation on chainring sizes
  • Weight Limit: 400 lb combined rider and cargo
  • Three wide-ranging frame sizes to fit most riders (S,M,L)
  • Complete Bike Weight 45 lb 14 oz with rack and bags (MD)

BUILD KIT:

  • Frame: Surly Big Dummy - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded
  • Fork: Surly Cocktail Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
  • Color: Twilight Zone
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano CUES U4000 GS
  • Cassette: Shimano CUES LG300, 11-46t, 9-speed
  • Chain: KMC XGlide EPT Anti-Rust
  • Crankset: Shimano CUES U6000, 32t
  • Shifter: Shimano CUES U4000
  • Brake Levers: Tektro HD-M3120
  • Brake Calipers: Tektro HD-M3120, 2 piston
  • Rotors: Tektro 6-bolt, 203mm, front and rear
  • Bottom Bracket: Shimano MT501, BSA
  • Headset: FSA Orbit MX
  • Stem: Kalloy AS007N
  • Handlebar: Surly Terminal
  • Bar Grips / Bar Tape: Velo Black
  • Seatpost: Kalloy SP-DC2
  • Saddle: WTB Rocket Fusion Medium
  • Front Hub: Novatec QR x 100mm
  • Rear Hub: Novatec QR x 135mm
  • Spoke: DT Swiss Champion
  • Rim: WTB ST Tough i30mm TCS 2.0, 26", 36h
  • Tires: Surly ExtraTerrestrial 26 x 2.5", 60 TPI, tubeless-ready
  • Pedals: not included

SIZING: Surly recommends the following sizes based on rider height

  • SM : 5'3" - 5'10"
  • MD : 5'6" - 6'
  • LG : 5'10" - 6'5"
