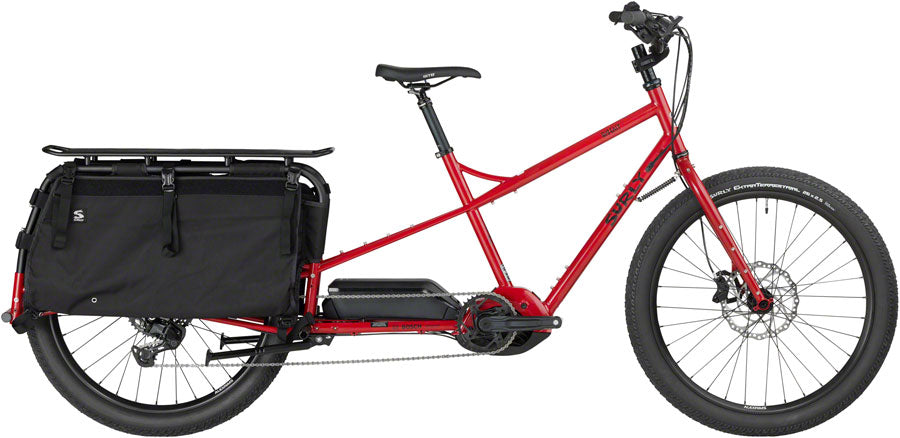

NEW Surly Big Easy Cargo eBike, Pile of Bricks Red

The Big Easy is a longtail cargo ebike that expands what's possible by bike. With passenger deck seating and the option to run dual batteries, families with children, entrepreneurs with bike supported businesses and commuters who want to  run  more errands en route to their destination will appreciate the maximum cargo potential of Big Easy. Now featuring a new Surly Dinner Fork and a completely redesigned thru-axle frame, Big Easy’s stability and stiffness adds to its overall cargo capability. Additional improvements include a new Bosch drivetrain, proprietary dual-leg kickstand, updated deck and rails, children’s seating compatibility, and overall geometry improvements to promote stability and greater rider range.

• Full component set selected for the demands of heavy cargo hauling, including Tektro four-piston hydraulic brakes for enhanced stopping power
• Expanded rider fit per size and long throw dropper post compatibility to improve bike sharing among different-sized riders
• Equipped with the most powerful Bosch electric bike motor
• Features Surly dual-leg kickstand for superior stability when loading and unloading cargo
• Two-seat passenger compatibility for human passengers big or small – no adapter needed (Thule Yepp Nexxt Maxi and Burley Dash)
• NOT compatible with our Bill and Ted trailers
• Lower stand over height for improved stability when stopping, mounting, and dismounting
• High-rise Surly Sunrise handlebars improve control and body position with heavy loads
• Featuring updated Big Dummy bags with simplified design and consistent cargo capacity
• Damping headset for smooth and stable handling under heavy loads
• Capable of running dual batteries for extended range
• Large-volume 26 x 2.5" Extraterrestrial tires for smoother
• Meets UL 2849, and UL 2271 certification

BUILD KIT:

• Frame: Big Easy
• Fork: Surly Dinner Fork

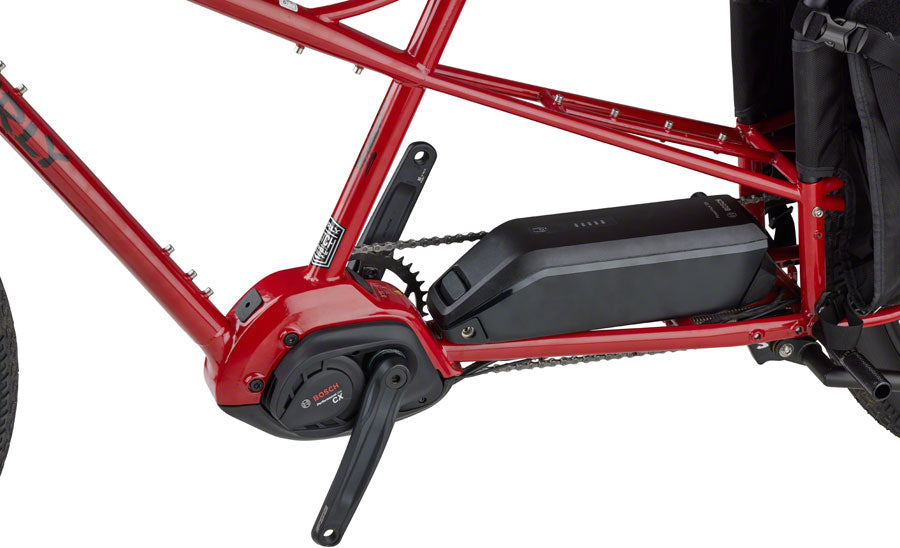

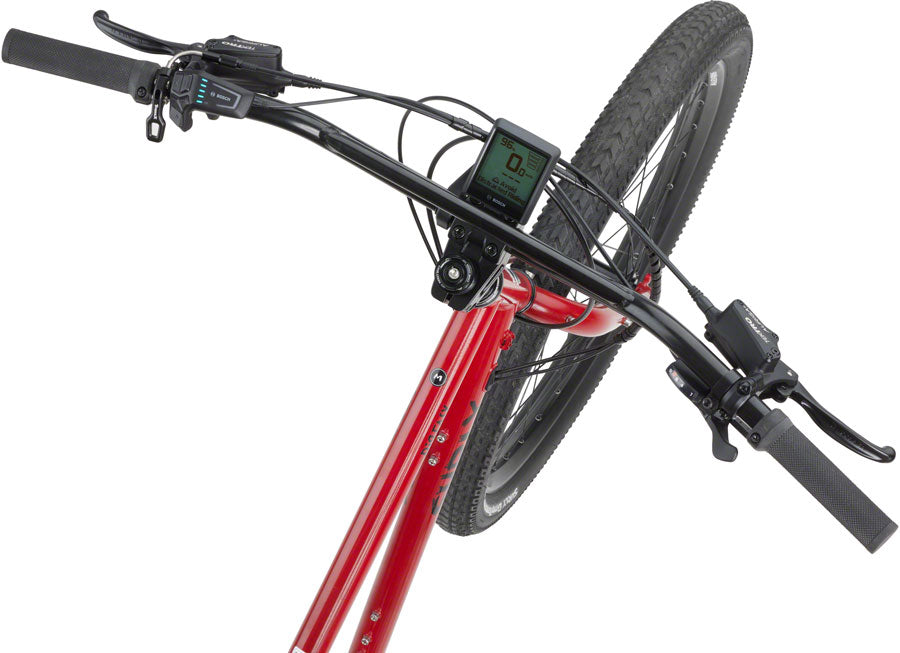

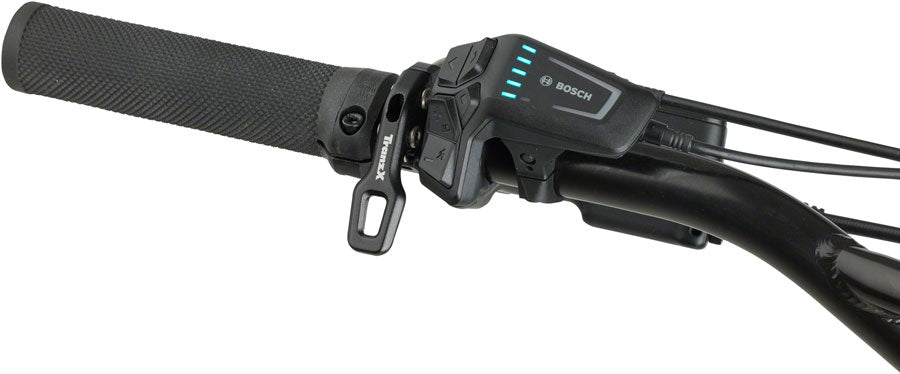

• Drive Unit: Bosch Performance Line Cargo, Intuvia 100 Display, LED Remote
• E-Bike Classification: Class 1
• Drive Type: Mid-drive
• Max Assist Speed: 20 mph / 32 km/h
• Motor Torque: 85Nm
• Range Estimate: 15–50 miles
• Assist Levels: 4 — Eco, Tour, Sport, Turbo
• Walk Assist: Yes
• Max Motor Assist: 340%
• Throttle: No
• Gross Payload: 400lb max total rider + cargo
• Battery Capacity: 725Wh / 19.2Ah
• Battery Voltage: 36V
• Battery Type: Li-ion
• Removable Battery: Yes
• Estimated Charge Time: 6 hours
• Charger: Bosch 4A Charger, 110V
• Lights: Not included
• Front Derailleur: N/A
• Rear Derailleur: Shimano CUES U4000 GS
• Cassette: Shimano CUES LG400, 11-46T, 9-speed
• Chain: KMC eGlide EPT Anti-Rust
• Crankset: FSA E-Bike CK-763/IS, paired with 38T FSA Chainring
• Shifter: Shimano CUES U4000
• Brake Levers: Tektro HD-T740
• Brake Calipers: Tektro HD-T740, 4-piston
• Rotors: 203mm F / 180mm R, 6-Bolt
• Headset: Cane Creek ViscoSet, tuned for Surly Big Easy, upper; 40 Series lower
• Stem: Sunday Freeze Top Load, 48mm
• Handlebar: Surly Sunrise
• Grips: Velo Black
• Seatpost: TransX JD-YSP15, 30.9mm Dropper Post, 120mm travel (SM–MD), 150mm travel (LG)
• Saddle: WTB Volt
• Front Hub: Novatec 15 x 110mm, 32h, 6-Bolt
• Rear Hub: Novatec 12 x 148mm, 32h, 6-Bolt
• Spokes: Straight 14G, Black
• Rims: Alex MD30, 26", 32h
• Front Tire: Surly Extra Terrestrial 26 x 2.5", 60tpi, Tubeless Compatible
• Rear Tire: Surly Extra Terrestrial 26 x 2.5", 60tpi, Tubeless Compatible
• Included Accessories: Deck, rails, bags, kickstand, and one set of round pegs
• Not Included: Additional passenger accessories, fenders, and lights

SIZING: Surly recommends the following sizes based on rider height:

• SM : 5'2" - 5'6"
• MD : 5'6" - 5'10"
• LG : 5'10" - 6'2"
