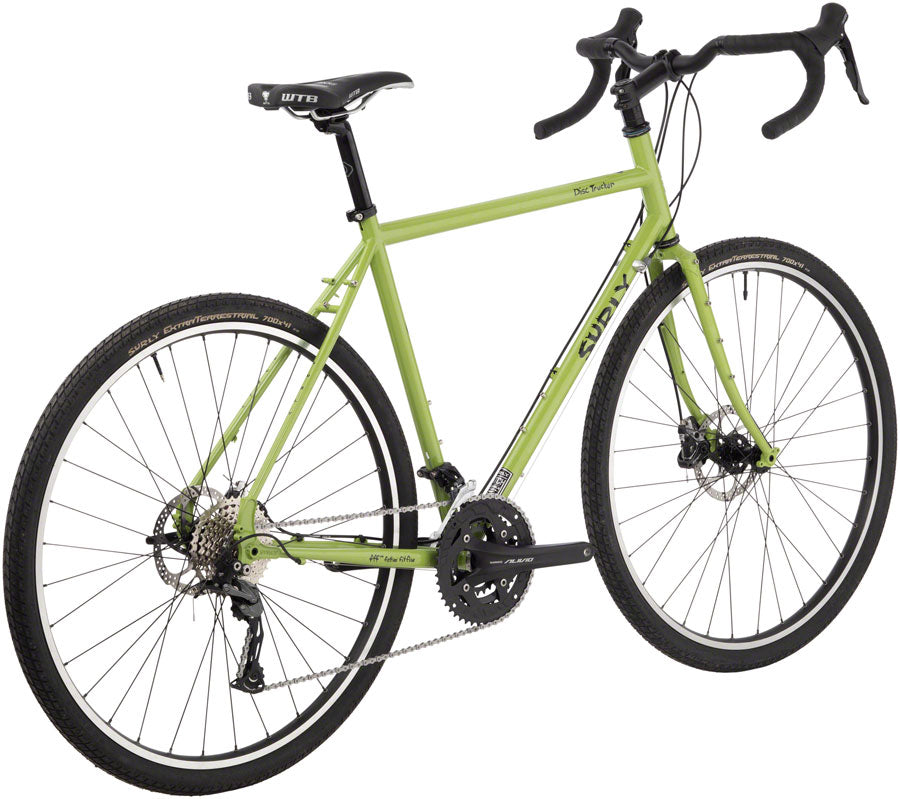

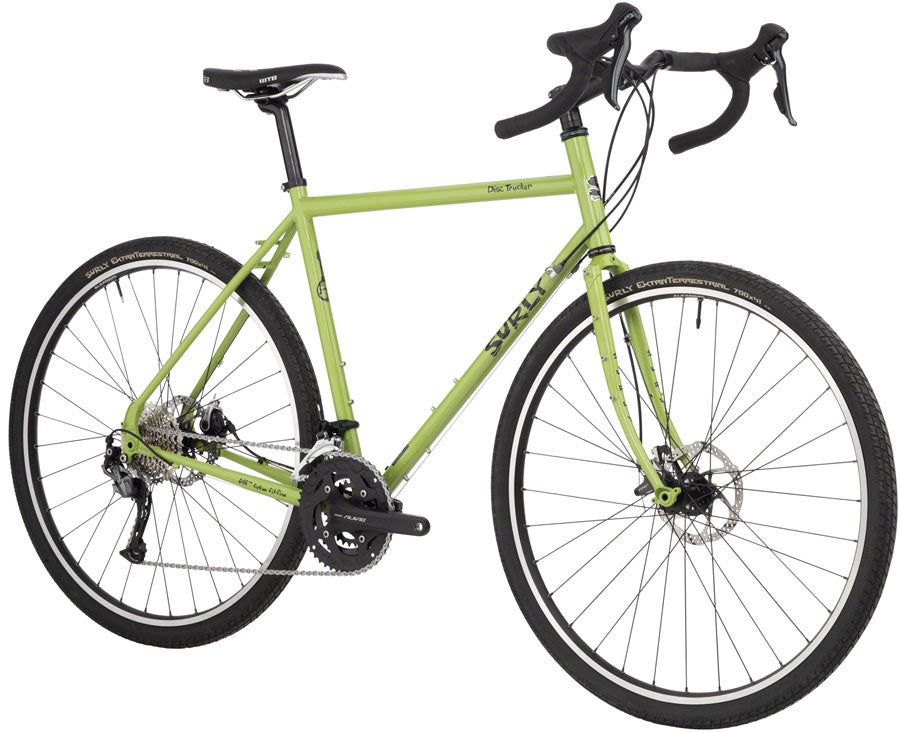

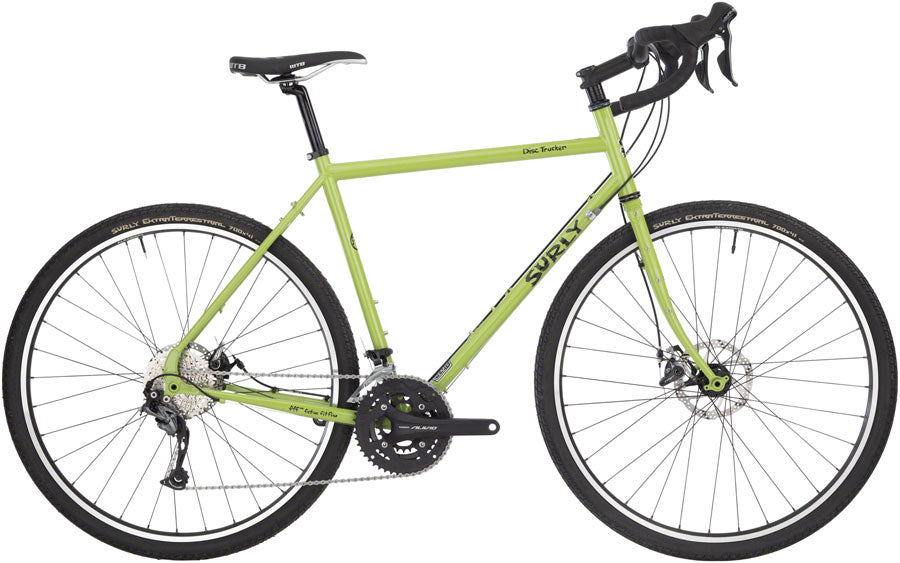

NEW Surly Disc Trucker Touring Bike - 700c, Steel, Pea Lime Soup

A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.

• 100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life
• Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough
• Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs
• Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes
• Clearance for 700c x 47mm with or without fenders
• Replacement spokes are not included on the first production run 700c Disc Trucker bikes and frames due to a non-safety related QC issue. The spoke holder brackets were spaced incorrectly. This issue will be resolved on future production runs

Build Kit

• Frame : 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Fork : 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
• Front Derailleur : Shimano Sora R3030
• Rear Derailleur : Shimano Alivio M4000 SGS
• Cassette/Cog : Shimano Alivio, 11-34t, 9 speed
• Chain : KMC X9
• Crankset : Shimano Alivio 48x36x26t
• Bottom Brcket : Shimano SM-BB52
• Shifter(s) : Shimano Sora 3x9
• Brakes Levers : Shimano Sora
• Brakes : TRP Spyre C
• Rotors : 160mm front and rear
• Headset : Cane Creek 40, 1-1/8"
• Stem : ProMax 31.8 4 bolt
• Handlebar : Surly Truckstop Bar
• Seatpost : ProMax 27.2, 350L, non-offset (42-50), offset (52-64)
• Saddle : WTB Volt Sport
• Wheels : Alex Adventurer 2 Rims, Novatech Hubs, Tubeless Ready
• Tires : Surly ExtraTerrestrial 700x41

Sizing

Surly recommends the following sizes based on rider height:

• 56cm 5'8" - 6'
• 58cm 5'10" - 6'3"
• 60cm 6' - 6'5"
• 62cm 6'2" - 6'7"
• 64cm 6'5" - 6'9"

Geometry in mm

Frame measurements (mm)	56cm	58cm	60cm	62cm	64cm
A. BB Drop	80	80	80	80	80
B. Chainstay Length	450	450	450	450	450
C. Fork Length - Axle to Crown	390	390	390	390	390
D. Fork Offset	45	45	45	45	45
E. Head Tube Angle (deg)	72	72	72	72	72
F. Headtube Length	175	195	215	235	250
G. Reach	387.5	391	400	402	412.5
H. Seat Tube Angle (deg)	73	72.5	72.5	72	72
I. Seat Tube Length - Center to Top	560	580	600	620	640
J. Stack	613	632	651.5	670.5	685
K. Standover	813	832	851	869	885.5
L. Top Tube Length (Effective)	575	590	605	620	635
M. Wheelbase	1051	1060	1075.5	1084	1090
Component measurements (mm)
Crank Arm Length	175	175	175	175	175
Handlebar Width	480	480	480	480	480
Handlebar Rise / Drop	30	30	30	30	30
Stem Length	100	100	110	120	120
Stem Angle (deg)	6	6	6	6	6
