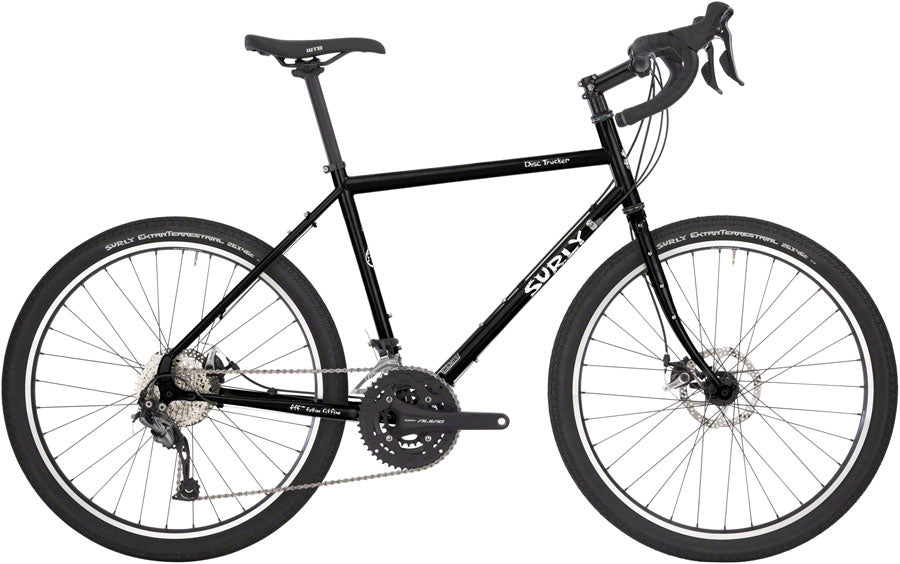

NEW Surly Disc Trucker Touring Bike - 26", Steel, Hi-Viz Black
NEW Surly Disc Trucker Touring Bike - 26", Steel, Hi-Viz Black
Regular price
$ 1,999.00 USD
Regular price
$ 1,999.00 USD
Sale price
$ 1,999.00 USD
Unit price
/
per
SKU: 210000051175
Special Order - In Warehouse or Pre-Order - contact us for ETA
PRODUCT DETAILS
A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.
- 100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life
- Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough
- Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs
- Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes
- Clearance for 26 x 2.1" tires with or without fenders
- Due to a performance issue, we have made a spec change to the front derailleur of the 26" Disc Trucker. A new derailleur will be included in the bike box along with the appropriate shims needed for proper install
Build Kit
- Frame : 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
- Fork : 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
- Front Derailleur : Shimano Sora R3030
- Rear Derailleur : Shimano Alivio M4000 SGS
- Cassette/Cog : Shimano Alivio, 11-34t, 9 speed
- Chain : KMC X9
- Crankset : Shimano Alivio 48x36x26t
- Bottom Brcket : Shimano SM-BB52
- Shifter(s) : Shimano Sora 3x9
- Brakes Levers : Shimano Sora
- Brakes : TRP Spyre C
- Rotors : 160mm front and rear
- Headset : Cane Creek 40, 1-1/8"
- Stem : ProMax 31.8 4 bolt
- Handlebar : Surly Truckstop Bar
- Seatpost : ProMax 27.2, 350L, non-offset (42-50), offset (52-64)
- Saddle : WTB Volt Sport
- Wheels : Alex Adventurer 2, Novatech QR Hubs
- Tires : Surly ExtraTerrestrial 26x46
Sizing
Surly recommends the following sizes based on rider height:
- 42cm 4'5" - 4'10"
- 46cm 4'8" - 5'1"
- 50cm 5' - 5'5"
- 52cm 5'2" - 5'8"
- 54cm 5'5" - 5'10"
- 56cm 5'8" - 6'
Geometry in mm
Frame measurements (mm) | 42cm | 46cm | 50cm | 52cm | 54cm | 56cm |
A. BB Drop | 50 | 50 | 50 | 50 | 50 | 50 |
B. Chainstay Length | 450 | 450 | 450 | 450 | 450 | 450 |
C. Fork Length - Axle to Crown | 376 | 376 | 376 | 376 | 376 | 376 |
D. Fork Offset | 45 | 45 | 45 | 45 | 45 | 45 |
E. Head Tube Angle (deg) | 70 | 70 | 71 | 71 | 71 | 71 |
F. Headtube Length | 125 | 130 | 170 | 185 | 205 | 225 |
G. Reach | 362 | 371 | 369 | 374.5 | 378 | 387.5 |
H. Seat Tube Angle (deg) | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
I. Seat Tube Length - Center to Top | 420 | 460 | 500 | 520 | 540 | 560 |
J. Stack | 515 | 520 | 561 | 575.5 | 594.5 | 613 |
K. Standover | 710 | 731 | 766 | 782 | 800 | 819.5 |
L. Top Tube Length (Effective) | 500 | 515 | 530 | 545 | 560 | 575 |
M. Wheelbase | 1026 | 1037 | 1040 | 1050 | 1060.5 | 1076 |
Component measurements (mm)
|
||||||
Crank Arm Length | 165 | 165 | 170 | 170 | 170 | 175 |
Handlebar Width | 420 | 420 | 420 | 450 | 450 | 480 |
Handlebar Rise / Drop | 30 | 30 | 30 | 30 | 30 | 30 |
Stem Length | 70 | 70 | 70 | 90 | 100 | 100 |
Stem Angle (deg) | 6 | 6 | 6 | 6 | 6 | 6 |
