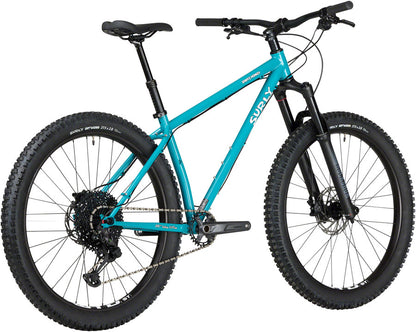

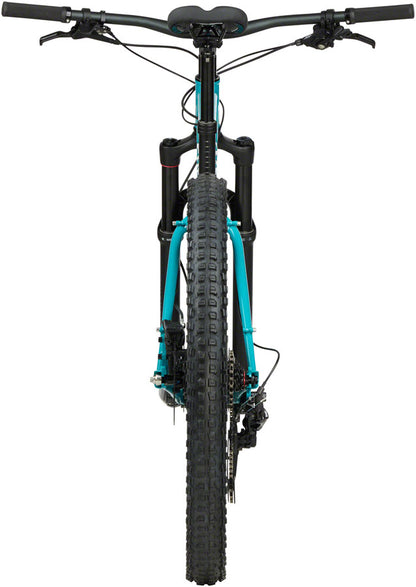

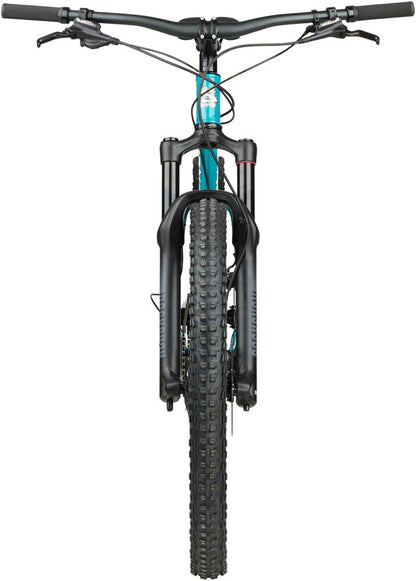

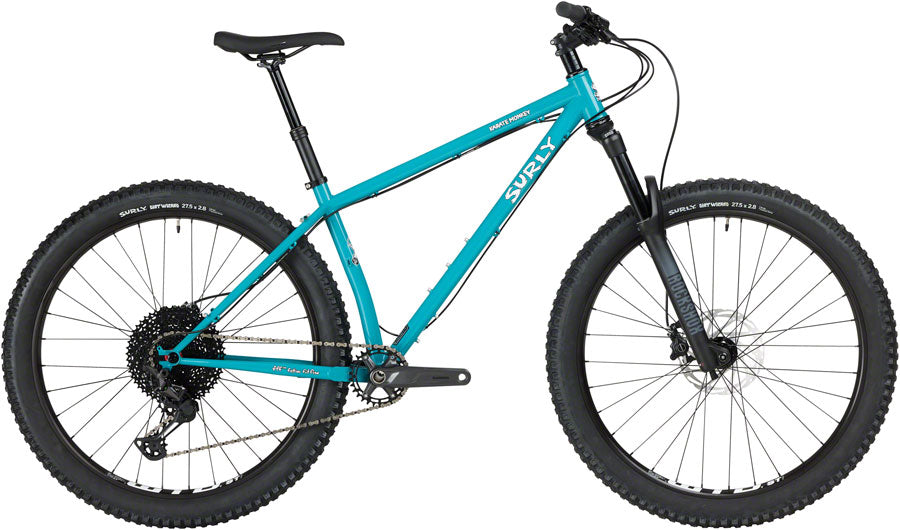

NEW Surly Karate Monkey Steel Hardtail Mountain Bike - Lost at Sea

NEW Surly Karate Monkey Steel Hardtail Mountain Bike - Lost at Sea

Regular price $ 2,599.00 USD
Regular price $ 2,599.00 USD Sale price $ 2,599.00 USD
Sold out
Size
SKU: 210000059648
Special Order - In Warehouse or Pre-Order - contact us for ETA

PRODUCT DETAILS

The Karate Monkey Front Suspension bike features a Rock Shox 35 Gold RL A2 suspension fork with 140mm travel, and it’s paired with a dropper post out the box. Progressive trail geometry and Surly’s Gnot-Boost rear dropout system deliver a versatile bike with the ability to swap hubs and wheel sizes. If you want to round-house kick some trail right in the face, the Karate Monkey is your sled.

  • 100% Surly Chromoly steel frame, double-butted main triangle and 44mm headtube
  • The tubeset uses Surly custom trumpet tubes for greater stiffness and durability
  • Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142 and 148 x 12mm thru, as well as 135mm w/ 10/12 washer
  • RockShox 35 Gold RL A2 suspension fork with 140mm travel
  • TranzX YSP15 dropper post with stealth routing; 100mm travel on XS, 120mm travel on SM–XL
  • Complete Bike Weight: 33 lb. 13 oz. for Medium

BUILD KIT:

  • Frame: Surly Karate Monkey - 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
  • Fork: RockShox 35 Gold RL, 27.5", 15 x 110mm, 140mm travel, 44mm offset
  • Color: Lost at Sea Blue
  • Rear Derailleur: Shimano M8100 XT SGS
  • Cassette: SunRace CSMZ800, 11-51t, 12spd
  • Chain: KMC X12 Anti-Rust
  • Crankset: Shimano MT511, 30T
  • Bottom Bracket: Shimano MT501, BSA
  • Shifter: Shimano Deore XT M8100
  • Brakes and Rotors: Tektro HD-M3520, Tektro 180/160, 6-Bolt
  • Headset: Cane Creek
  • Stem: Promax DA-296, 31.8mm
  • Handlebar: Salsa Rustler
  • Grips / Bar Tape: Velo Black
  • Seatpost: TranzX YSP15, 30.9mm Travel XS: 100mm, SM-XL: 120mm
  • Saddle: WTB Volt Medium
  • Front Hub: Novatec 15x110mm, 32h
  • Rear Hub: Novatec 12x148mm, 32h
  • Rims: WTB ST i35 TCS 2.0 27.5"
  • Tires: Surly Dirt Wizard 27.5 x 2.8", 60tpi, Tubeless Ready
  • Spokes: 14G Black

SIZING: Surly recommends the following sizes based on rider height

  • XS : 5' - 5'5"
  • SM : 5'4" - 5'8"
  • MD : 5'7" - 6'
  • LG : 5'11" - 6'3"
  • XL : 6'2" - 6'6"
