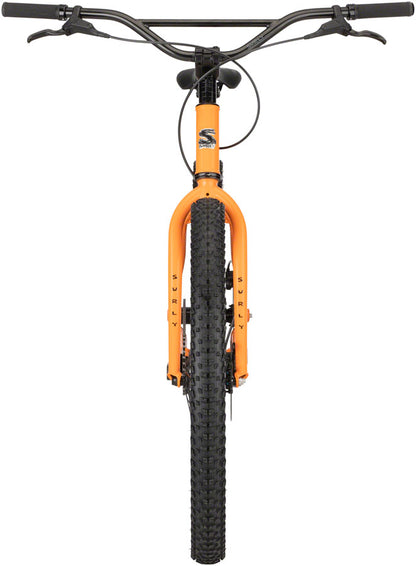

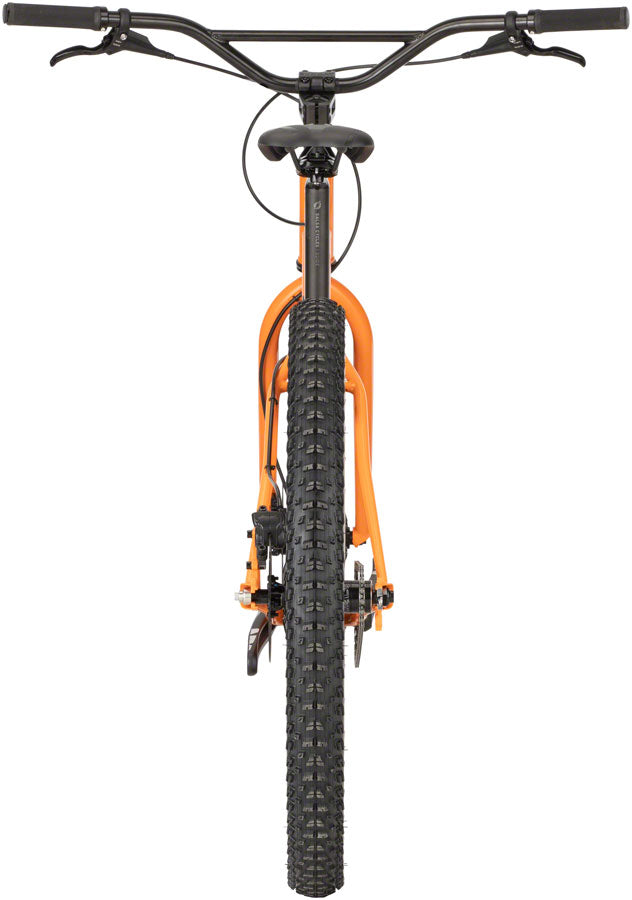

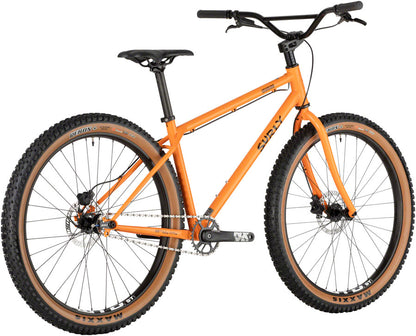

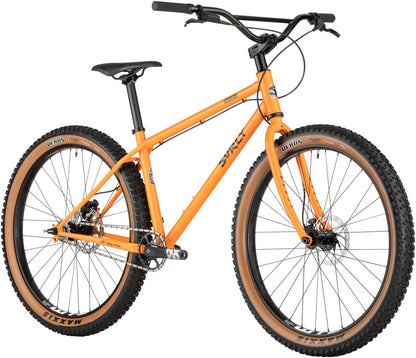

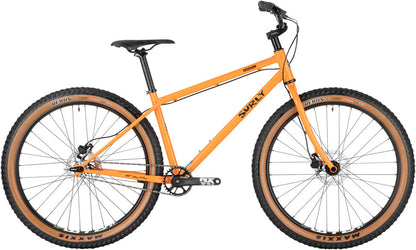

NEW Surly Lowside - Dream Tangerine Mountain Bike

The Lowside is the bike that gets you across town for a quick rip on singletrack, then over to the bar for a night out. It’s the bike you turn to when you’re not entirely sure what the night has in store. It’s the bike to grab when you want to have just much fun riding to the trail as you do from the trail itself. Singlespeeding is an integral part of Surly’s DNA, and the Lowside continues the tradition, by taking a simpler approach to trail riding.

• 100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
• Singlespeed “specific” (derailleur hanger but no Trip Guides)
• Dropper post routing
• Gnot-Boost rear spacing
• Front and rear thru-axle
• 26 x 3” or 27.5 x 2.8” tire clearance

Build Kit

• Frame : Surly Lowside, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
• Fork : Surly Lowside, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
• Cassette/Cog : Surly 17t w/ spacer kit
• Chain : KMC X10
• Crankset : SRAM NX 32t
• Bottom Brcket : SRAM Powerspline
• Brakes : Tektro Hydro M275/276
• Rotors : 160mm rotors front & rear
• Headset : Cane Creek
• Stem : Sunday Freeze top load 22.2mm clamp
• Handlebar : Surly Sunrise
• Seatpost : 2 Bolt, 30.9mm
• Saddle : Selle Italia Black
• Wheels : WTB ST i35 TCS, Novatech TA Hubs
• Tires : Maxxis Rekon+ 27.5 x 2.8", 60tpi\

Sizing

Surly recommends the following sizes based on rider height:

• XS 5' - 5'5"
• SM 5'4" - 5'8"
• MD 5'7" - 6'
• LG 5'11" - 6'3"
• XL 6'2" - 6'6"

Geometry in mm

Frame measurements (mm)	XS	SM	MD	LG	XL
A. BB Drop	55	55	55	55	55
B. Chainstay Length	425	425	425	425	425
C. Fork Length - Axle to Crown	420	420	420	420	420
D. Fork Offset	47	47	47	47	47
E. Head Tube Angle (deg)	70	70	70	70	70
F. Headtube Length	110	125	140	155	170
G. Reach	414.5	429.3	445.3	461	477
H. Seat Tube Angle (deg)	74	74	74	74	74
I. Seat Tube Length - Center to Top	316	366	416	466	516
J. Stack	542.2	560.3	574.4	588.5	602.5
K. Standover	700	729	762	792	823
L. Top Tube Length (Effective)	570	590	610	630	650
M. Wheelbase	1068	1089	1110	1131	1152
Component measurements (mm)
Crank Arm Length	170	170	175	175	175
Handlebar Width	820	820	820	820	820
Handlebar Rise / Drop	83	83	83	83	83
Stem Length	52	52	52	52	52
Stem Angle (deg)	6	6	6	6	6
