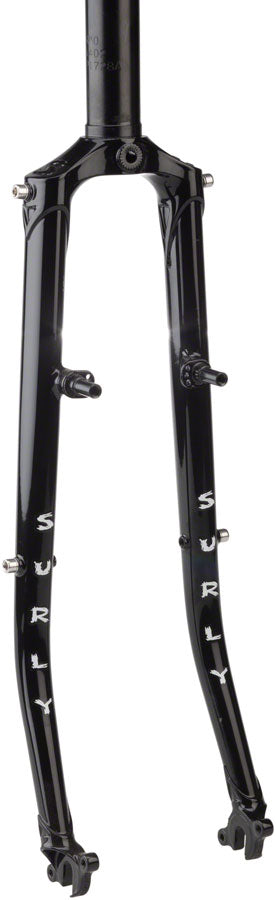

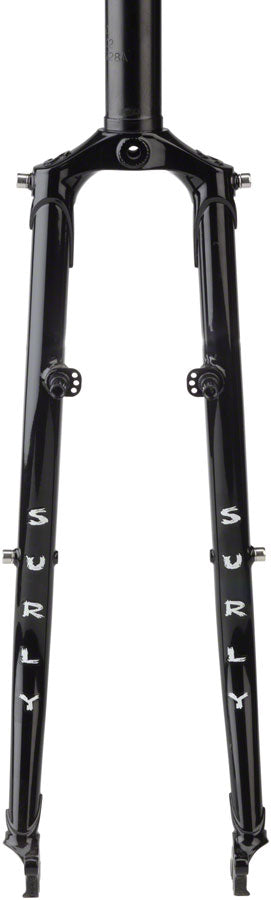

Designed with the Surly Pack Rat frame, this fork is built with front cargo top of mind. It's made from 4130 CroMoly steel and features mid-blade eyelets for mounting a Surly 8- or 24-pack rack (among others). This lugged and brazed fork also includes fender eyelets at the dropouts, internal routing for generator hubs, and cantilever brake pivots.

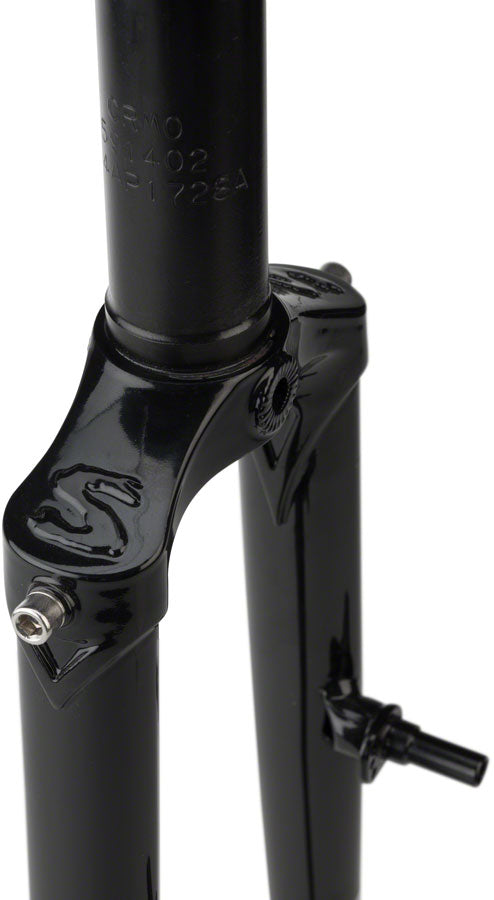

100% CroMoly construction, fully brazed crown

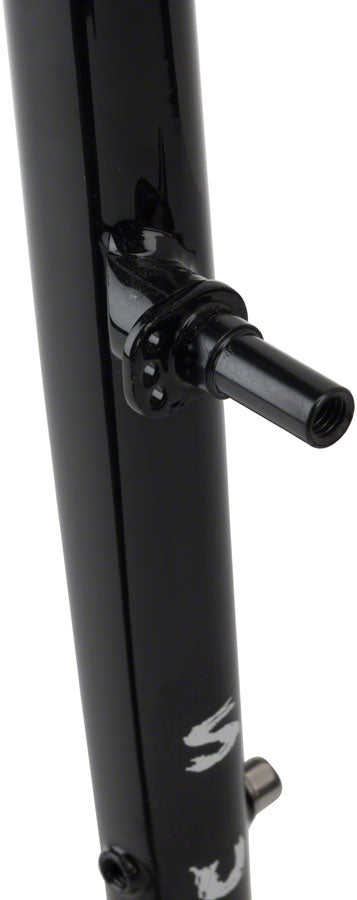

Mid-blade thru-blade eyelets for mounting a front rack

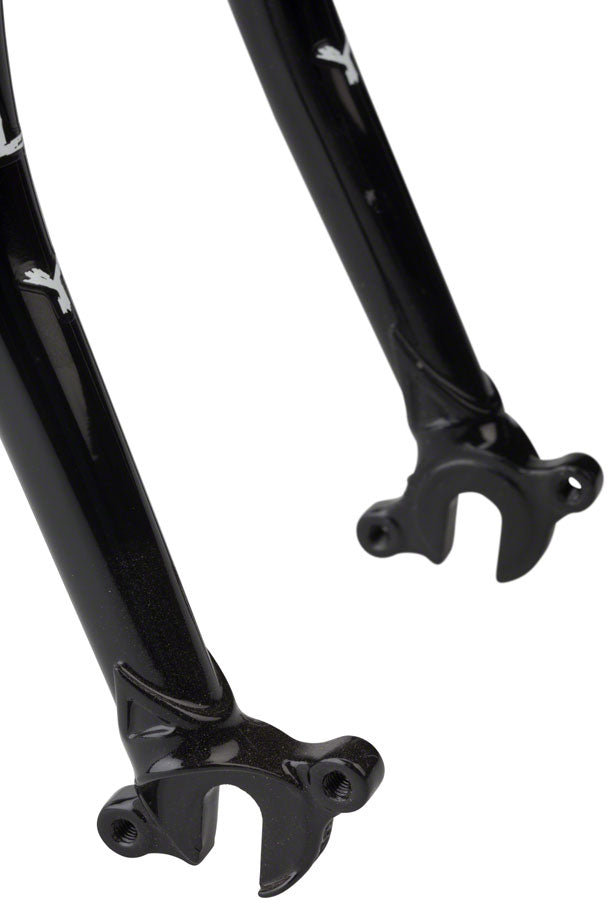

Fender eyelets at the dropout
Internal routing for generator hubs
Cantilever/Linear Pull brake mounts
9mm x 100mm quick-release dropouts
Steerer Type: Straight
S.H.I.S. Stem Clamp Diameter: 28.6
Defined Color: Black
Steerer Tube Length (mm): 260
Steerer Tube Length (mm): 350
Wheel Size: 650b
Weight: 1150
Offset: 0
Offset: 44
Axle to Crown Length: 390
Crown Race: 30
Brake Mount (Fork): Canti Studs
Front Axle: 9x1 Threaded x 100mm
Color: Black
Material: Chromoly Steel
Maximum Tire Clearance (Fork): 650b x 48c
