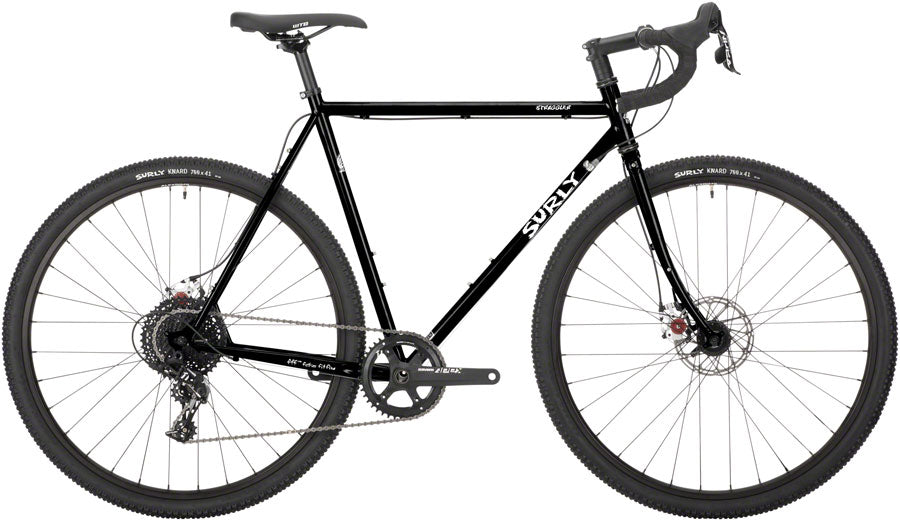

NEW Surly Straggler Cyclocross Gravel Bike - 700c, Steel, Black

Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.

• Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts, downtube shifter mounts
• 100% Surly proprietary 4130 chromoly tubing. TIG-welded, double-butted main triangle
• Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run.
• Frame is ED Coated for increased life expectancy

Build Kit

• Frame : 100% Surly Chromoly tubing. E.D. Coated. TIG-welded. Double-butted main triangle.
• Fork : 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated100% Surly Chromoly steel. Disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets.
• Rear Derailleur : SRAM Apex 1x11
• Cassette : SunRace CSMS7, 11–42t, 11-speed
• Chain : CNP1110
• Crankset : SRAM FC Apex 42t
• Bottom Brcket : SRAM GXP
• Shifter(s) : SRAM Apex 1x11
• Brakes : SRAM Avid BB7 Road
• Rotors : 160mm F/R
• Headset : Cane Creek 40, 1-1/8"
• Stem : 31.8, 4-bolt
• Handlebar : Salsa Cowbell
• Seatpost : Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm
• Saddle : WTB Volt 142
• Wheels : Alex Adventurer 2 Rims, Novatech Hubs, Tubeless Ready
• Tires : Surly Knard 700c x 41mm, 33 tpi & 650b x 41mm, 33 tpi

Sizing

Surly recommends the following sizes based on rider height:

• 54cm 5'5" - 5'10"
• 56cm 5'8" - 6'
• 58cm 5'10" - 6'3"
• 60cm 6' - 6'5"
• 62cm 6'2" - 6'7"

Geometry in mm

Frame measurements (mm)	54cm	56cm	58cm	60cm	62cm
A. BB Drop	72	72	72	72	72
B. Chainstay Length	425	430	430	430	430
C. Fork Length - Axle to Crown	400	400	400	400	400
D. Fork Offset	44	44	44	44	44
E. Head Tube Angle (deg)	72.0	72.0	72.0	72.0	72.0
F. Headtube Length	107	121	146	165	185
G. Reach	396.3	400.7	408.2	412.1	420.9
H. Seat Tube Angle (deg)	73.0	72.5	72.5	72.0	72.0
I. Seat Tube Length - Center to Top	540	560	580	600	620
J. Stack	549.2	567.3	591.1	609.1	628.2
K. Standover	791.7	809.4	828.7	846.1	865.0
L. Top Tube Length (Effective)	565	580	595	610	625
M. Wheelbase	1016.5	1031.9	1047.0	1056.8	1071.8
