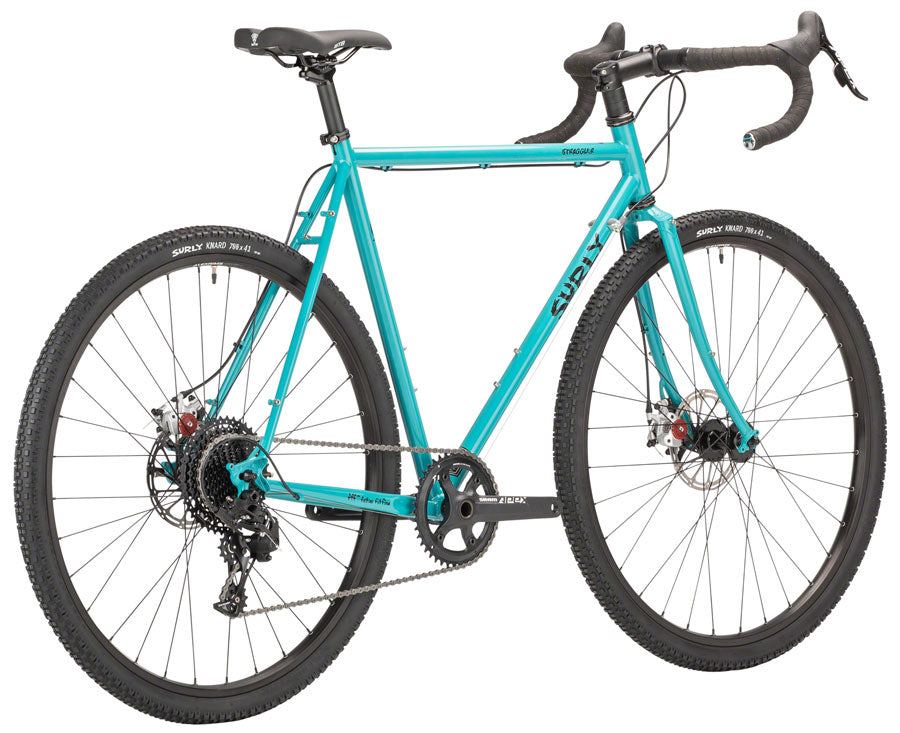

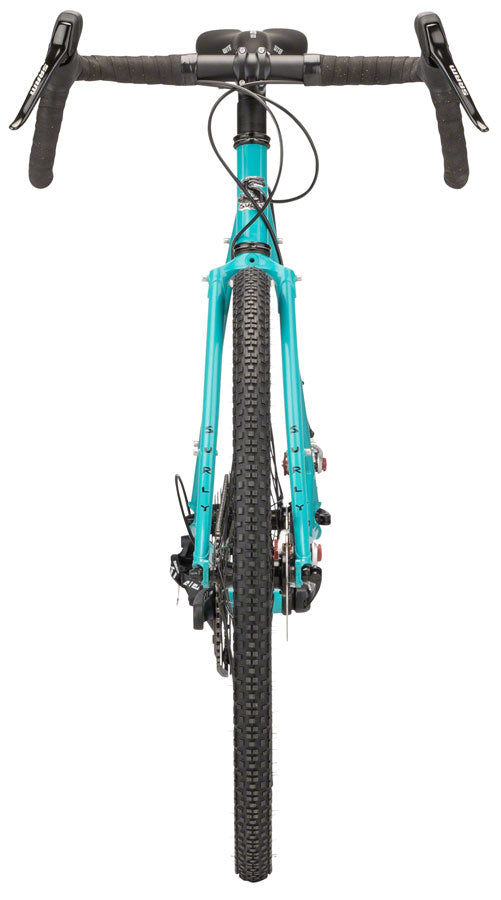

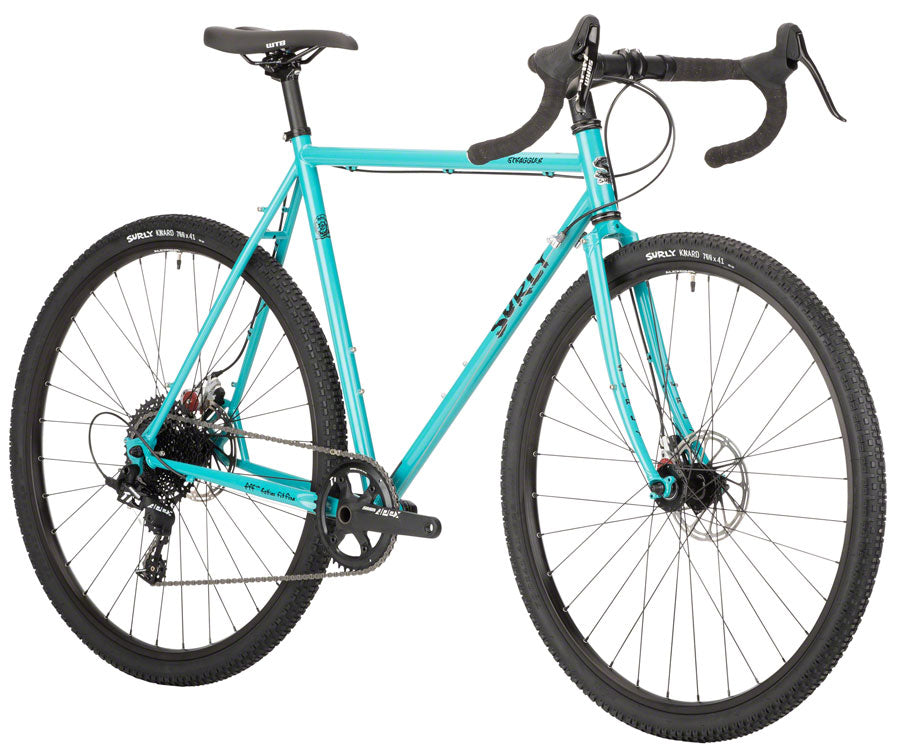

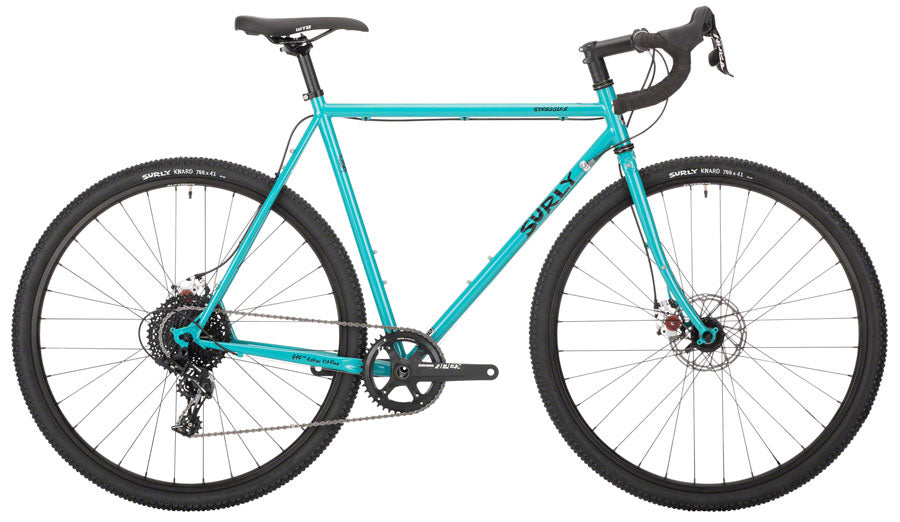

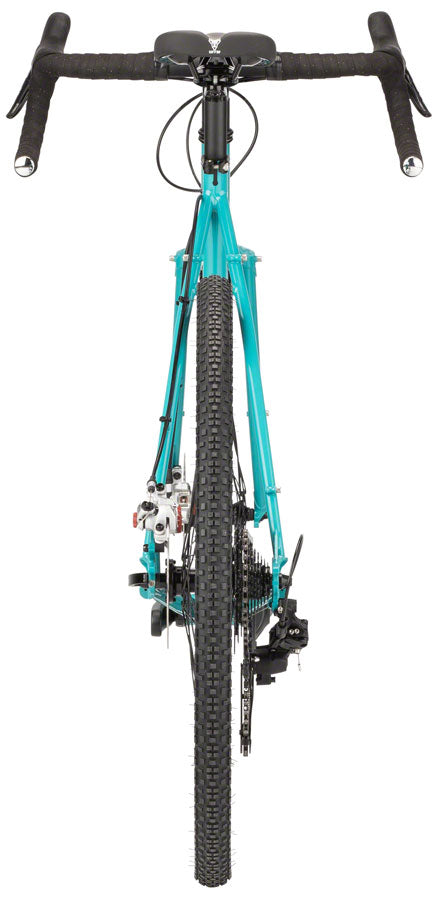

NEW Surly Straggler Cyclocross Gravel Bike - 700c, Steel, Chlorine Dream
NEW Surly Straggler Cyclocross Gravel Bike - 700c, Steel, Chlorine Dream
Regular price
$ 1,699.00 USD
Regular price
$ 1,699.00 USD
Sale price
$ 1,699.00 USD
Unit price
/
per
SKU: 210000036903
Available In Store
PRODUCT DETAILS
Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.
- Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts, downtube shifter mounts
- 100% Surly proprietary 4130 chromoly tubing. TIG-welded, double-butted main triangle
- Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run.
- Frame is ED Coated for increased life expectancy
Build Kit
- Frame : 100% Surly Chromoly tubing. E.D. Coated. TIG-welded. Double-butted main triangle.
- Fork : 100% Surly Chromoly steel. Disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets.
- Rear Derailleur : SRAM Apex 1x11
- Cassette/Cog : SunRace CSMS7, 11–42t, 11-speed
- Chain : CNP1110
- Crankset : SRAM FC Apex 42
- Bottom Brcket : SRAM GXP
- Shifter(s) : SRAM Apex 1x11
- Brakes : SRAM Avid BB7 Road
- Rotors : 160mm rotors front & rear
- Headset : Cane Creek 40, 1-1/8"
- Stem : 31.8, 4-bolt
- Handlebar : Salsa Cowbell
- Seatpost : Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm
- Saddle : WTB Volt 142
- Wheels : Alex Adventurer 2, Novatech Hubs, Tubeless Ready
- Tires : Surly Knard 700c x 41mm, 33 tpi & 650b x 41mm, 33 tpi
Sizing
- 54cm 5'5" - 5'10"
- 56cm 5'8" - 6'
- 58cm 5'10" - 6'3"
- 60cm 6' - 6'5"
- 62cm 6'2" - 6'7"
Geometry
Frame measurements (mm) | 54cm | 56cm | 58cm | 60cm | 62cm |
A. BB Drop | 72 | 72 | 72 | 72 | 72 |
B. Chainstay Length | 425 | 430 | 430 | 430 | 430 |
C. Fork Length - Axle to Crown | 400 | 400 | 400 | 400 | 400 |
D. Fork Offset | 44 | 44 | 44 | 44 | 44 |
E. Head Tube Angle (deg) | 72 | 72 | 72 | 72 | 72 |
F. Headtube Length | 107 | 121 | 146 | 165 | 185 |
G. Reach | 396.3 | 400.7 | 408.2 | 412.1 | 420.9 |
H. Seat Tube Angle (deg) | 73 | 72.5 | 72.5 | 72 | 72 |
I. Seat Tube Length - Center to Top | 540 | 560 | 580 | 600 | 620 |
J. Stack | 549.2 | 567.3 | 591.1 | 609.1 | 628.2 |
K. Standover | 791.7 | 809.4 | 828.7 | 846.1 | 865 |
L. Top Tube Length (Effective) | 565 | 580 | 595 | 610 | 625 |
M. Wheelbase | 1016.5 | 1031.9 | 1047 | 1056.8 | 1071.8 |
Component measurements (mm)
|
|||||
Crank Arm Length | 172.5 | 175 | 175 | 175 | 175 |
Handlebar Width (cm) | 42 | 44 | 44 | 46 | 46 |
Handlebar Rise / Drop | - | - | - | - | - |
Stem Length | 100 | 100 | 120 | 120 | 120 |
Stem Angle (deg) | 7 | 7 | 7 | 7 | 7 |
